CERACOLD CECD
Porous ceramic-based heat sink for excellent insulation
Feature
Better thermal emissivity and heat dissipation is enhanced by a larger surface area of porous ceramic material compared to aluminum material.
Lighter than aluminum heat sinks by approx.. 30%
No electromagnetic radiation emitted from the heat sink unlike metal heat sinks.
Complied with RoHS Directive 2011/65/EU
- Non-Silicon
- High flexibility
- Single-sided adhesive
Materials
Specification
List
| Material | Non-Silicon | Feature | Electromagnetic wave countermeasure, Heat dissipating material |
|---|---|---|---|
| Color | Green | Specific gravity | 1.95 |
| Volume resistivity(Ω・cm) | ≧108 | Adhesive strenght(N / 25mm) | >- |
| Hardness(ASKER C) | - | Hardness(Shore A) | - |
| Phase change temperature(°C) | - | Thermal conductivity(W / m・K) | 11.5 |
| Permeability(μ') | - | Standard length(mm) | - |

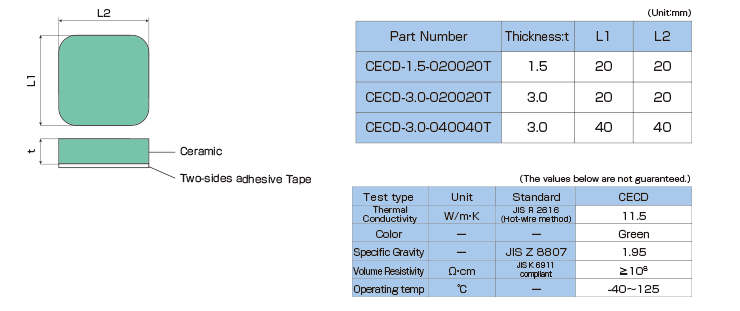

Part No. list
You can download a drawing and a test report,
add an sample to Sample Request Box per part number.
| Part No. | Thickness(mm) | L1(mm) | L2(mm) | Flame retardance(UL) | Download Data | Sample Request |
|---|---|---|---|---|---|---|
| CECD-1.5-020020T | 1.5 | 20 | 20 | - | ||
| CECD-3.0-020020T | 3.0 | 20 | 20 | - | ||
| CECD-3.0-040040T | 3.0 | 40 | 40 | - |
