Noise Reduction (EMC Reduction)Parts

Electromagnetic wave absorption (noise suppression) sheet

Electromagnetic wave absorption (noise suppression) sheet

COOLPROVIDE EMPV4

Combined function

Electromagnetic noise suppresion sheet with high permeability and posible thermal management

Feature

Lowe hardness (ASKER C40), high permeability ( '=13) was realized as non silicone thermally conductive sheet.
Due to lower hardness, it enables intimate contact and low load to the element while in mounting.
Silicone-free, no siloxane outgassing.
Oil bleeding is reduced compared to silicone-based thermal materials.

Complied with RoHS Directive 2011/65/EU

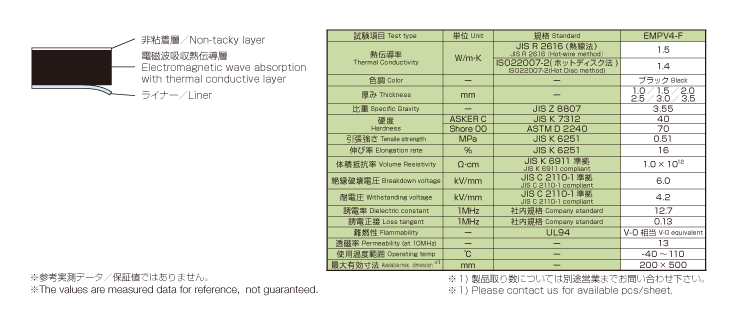

Specification

List

EMPV4
EMC solution Service

Part No. list

You can download a drawing and a test report,
add an sample to Sample Request Box per part number.

Part No. 厚み(mm) 難燃性 List of Materials Sample Request
EMPV4-1.0F 1.0 V-0 equivalent Please ask
EMPV4-1.5F 1.5 V-0 equivalent Please ask
EMPV4-2.0F 2.0 V-0 equivalent Please ask
EMPV4-2.5F 2.5 V-0 equivalent Please ask
EMPV4-3.0F 3.0 V-0 equivalent Please ask
EMPV4-3.5F 3.5 V-0 equivalent Please ask

Product Inquiry

Please send us your inquiry from the query system regarding product and technical matter about it.
EMC Design based on well-trained measurement skill and suggestion of selection guide of effective electro magnetic wave absorption (noise suppression) sheet is available.

If you are a website member, you can easily ask inquiry after Login.
