COOLPROVIDE™ CPVT
Feature
Extremely thin, ranging from 0.1mm to 0.25mm in 0.05mm increments minimizes load on PCBs.
One-side self-tacky sheet provides easy workability compared to grease.
Super low-hardness (ASKER C 28) and excellent adhesiveness minimizes thermal resistance
Silicone-free, no siloxane outgassing
Unlike silicone pads, the silicone free pad bleeds hardly any oil and rarely causes problems to peripheral components.
Operating temperature range is from -20℃ to 100℃.
- Thermal pad
- Silicone-free
- One side tacky
- Thin type
Materials

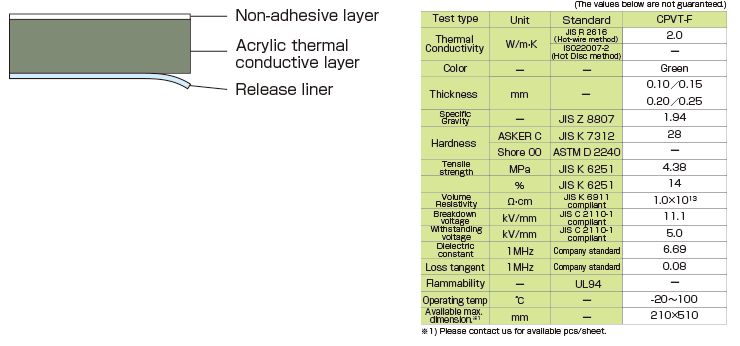

Specification
List
| Material | Non-Silicon | Feature | One side tacky, Thin type |
|---|---|---|---|
| Color | Green | Specific gravity | - |
| Volume resistivity(Ω・cm) | 1.0×10[[sup:12]] | Tracking resistance test CTI(V) | - |
| Hardness(ASKER C) | 28 | Hardness(Shore OO) | - |
| Hardness(Shore A) | - | Thermal conductivity(Hot wire method)(W / m・K) | 2.0 |
| Thermal conductivity(Hot Disk method)(W / m・K) | 1.4 | Phase change temperature(℃) | - |
| Permeability(μ') | - | Maximum effective dimensions(mm) | 200×500 |
Different part number may have different characteristics. Please refer to the catalog for details.
Please refer to the catalog for thermal conductivity standards.
The thermal pad can be layered to make it thicker.
Part No. list
You can download a drawing and a test report,
add an sample to Sample Request Box per part number.
| Part No. | Thickness(mm) | L1(mm) | L2(mm) | Flame retardance(UL) | Download Data | Sample Request |
|---|---|---|---|---|---|---|
| CPVT-0.10F | 0.1 | 210 | 510 | - | ||
| CPVT-0.15F | 0.15 | 210 | 510 | - | ||
| CPVT-0.20F | 0.2 | 210 | 510 | - | ||
| CPVT-0.25F | 0.25 | 210 | 510 | - |
