Thermal design product
Heat transfer pad
Heat transfer pad
COOLPROVIDE CPSH
Non-silicone
5W/m・K silicone thermal pad (ASKER C 32) for high operating temperature applications
Feature
Super compliable (ASKER C 32) material minimizes thermal resistance.
Silicone-free, no siloxane outgassing.
Oil bleeding is reduced compared to silicone-based thermal materials.
- Non-Silicon
- High flexibility
- Double-sided tack
- Available for UL
Materials
Acrylic
Specification
List
| Material | Non-Silicon | Feature | High flexibility, Double-sided tack, Available for UL |
|---|---|---|---|
| Color | Light green | Specific gravity | - |
| Volume resistivity(Ω・cm) | 1.0×10[[sup:11]] | Adhesive strenght(N / 25mm) | - |
| Hardness(ASKER C) | 32 | Hardness(Shore A) | - |
| Phase change temperature(°C) | - | Thermal conductivity(W / m・K) | 5.0 |
| Permeability(μ') | - | Standard length(mm) | 210×510 |

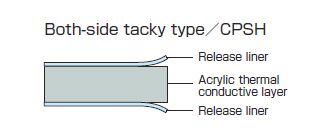

Product Dimensions
