Thermal design product
Heat transfer pad
Heat transfer pad
BONDPLY BP
0.13mm thick, Thermally conductive, double-sided adhesive tape (Thermal pad)
Feature
Fiber glass based double-sided adhesive tape with good workability.
The adhesive strength of the very thin tape increases with heat load.
Uses silicone free material, no siloxane outgassing.
Unlike silicone pads, the silicone free pad bleeds hardly any oil and rarely causes problems to peripheral components.
Operating temperature range is from -20℃ to 100℃
【brand : Henkel AG & Co. KGaA】
Compliant with RoHS Directive 2011/65/EU
- Thermal pad
- Non silicone
- Natural tack on both sides
- UL rated available
- Thin type
Materials
Specification
List
| Material | Non-silicone | Feature | Natural tack on both sides, UL rated available, Thin type |
|---|---|---|---|
| Color | White | Specific gravity | - |
| Volume resistivity(Ω・cm) | 6.9×10[[sup:13]] | Adhesive strenght(N / 25mm) | >- |
| Hardness(ASKER C) | - | Hardness(Shore A) | - |
| Phase change temperature(°C) | - | Thermal conductivity(W / m・K) | 0.8 |
| Permeability(μ') | - | Standard length(mm) | 280×305 |

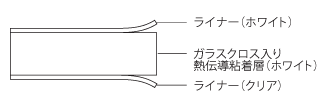

Product Dimensions
Product Inquiry
Please send us your inquiry from the query system regarding product and technical matter about it.
Suggestion of selection guide of expected Thermal Interface Product is also available.
