Noise Reduction (EMC Reduction)Parts

On-board anti-material

On-board anti-material

SIDE CONTACT OGSC

Contact

Automated mounting applicable component for grounding with side-contact on PC board.

Feature

Side-contact is applicable on PC board edge against chassis.
Grounding contact is applicable between mother PC board and vertically placed daughter board.

Complied with RoHS Directive 2011/65/EU

Specification

List

Product Dimensions

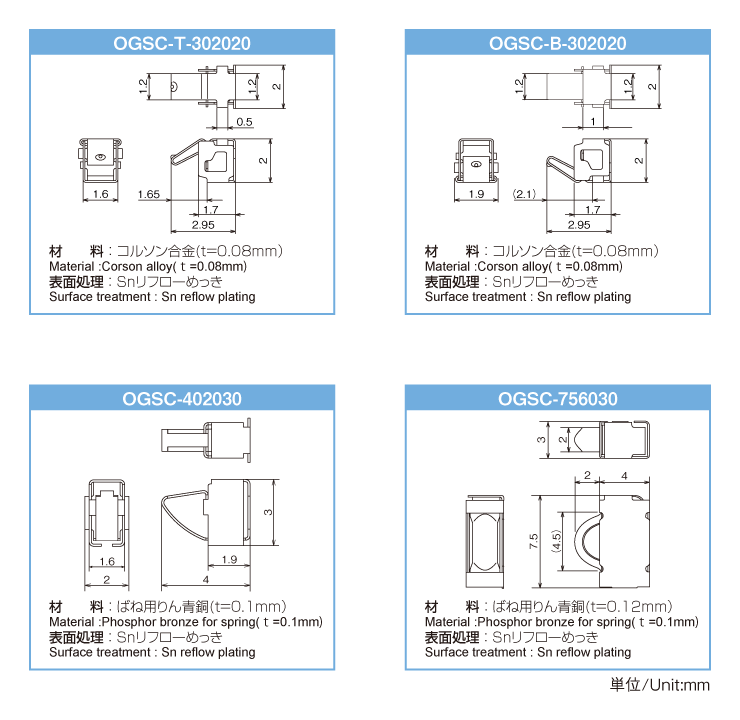

OGSC

3DPDF

You can download the 3D PDF.
Please contact us for 3D PDFs with different part numbers.

Please see here when using it.

About viewing 3D PDF

About viewing 3D PDF

When you open a PDF that contains 3D content, you'll see a yellow bar at the top with the message "3D content is disabled."
Please enable the function to view.

To enable 3D content in the current document

Click the Options button and then select an appropriate option:

  • Trust this document one time only
  • Trust this document always
To enable 3D content permanently:

Go to Edit > Preferences > 3D & Multimedia and then select the Enable playing 3D content checkbox.

3DPDF
Get Adobe Acrobat Reader

You will need the Adobe Acrobat Reader to see above PDF files.
“Adobe” and “Acrobat” are either registered trademarks or trademarks of Adobe Systems Incorporated.

EMC solution Service

Part No. list

You can download a drawing and a test report,
add an sample to Sample Request Box per part number.

Part No. Download Data Sample Request
OGSC-756030
OGSC-402030
OGSC-T-302020
OGSC-B-302020

Product Inquiry

lease send us your inquiry from the query system regarding product and technical matter about it.
EMC Design based on well-trained measurement skill and suggestion of selection guide of effective grounding contact is available.

If you are a website member, you can easily ask inquiry after Login.
