LOW CUT CORE TRM
Feature
Noise filter with high impedance in a low frequency band (kHz to MHz)
Epoxy coated ferrite core has rounded corners to reduce load on cables.
Effective suppression of common mode noise
- Ferrite core (Noise filter)
- Common mode noise suppression
Materials
Specification
List
| Feature | Non split type | Cable types | Round cable |
|---|---|---|---|
| Frequency band | Power line noise | Usage | For radiated noise |
Different part number may have different characteristics. Please refer to the catalog for details.

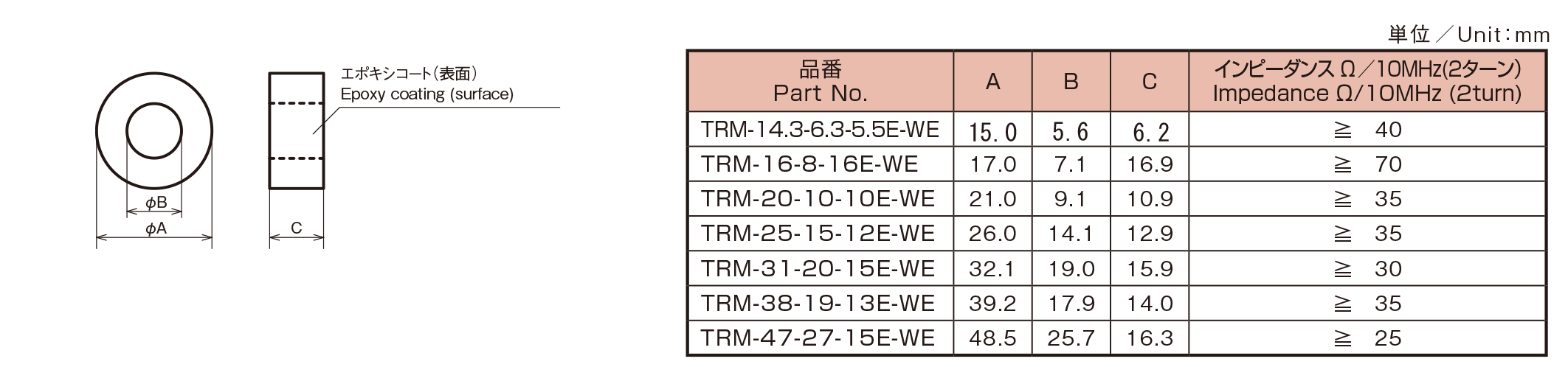

Part No. list
You can download a drawing and a test report,
add an sample to Sample Request Box per part number.
| Part No. | Outer diameter (mm) |
Inner diameter (mm) |
Length (mm) |
Download Data | Sample Request |
|---|---|---|---|---|---|
| TRM-14.3-6.3-5.5E-WE | 15.0 | 5.6 | 6.2 | ||
| TRM-16-8-16E-WE | 17.0 | 7.1 | 16.9 | ||
| TRM-20-10-10E-WE | 21.0 | 9.1 | 10.9 | ||
| TRM-25-15-12E-WE | 26.0 | 14.1 | 12.9 | ||
| TRM-31-20-15E-WE | 32.1 | 19.0 | 15.9 | ||
| TRM-38-19-13E-WE | 29.2 | 17.9 | 14.0 | ||
| TRM-47-27-15E-WE | 48.5 | 25.7 | 16.3 |
Product Inquiry
Please send us your inquiry from the query system regarding product and technical matter about it.
Ferrite Cores (noise filter) over wide frequency band with various fitteing measure are available.
EMC Design based on well-trained measurement skill and suggestion of selection guide of effective ferrite core are available.
