TOROIDAL CORE KTR

Non-split ferrite core

Non-split toroidal core for Mid-frequency range from 3 to 50MHz.

Feature

Effective for suppression both of conducted noise upto 30MHz and radiated noise over 30MHz.
With regard to variation of size, please contact our sales department.

Complied with RoHS Directive 2011/65/EU

Materials

Soft ferrite (Epoxy coating)

Specification

List

Feature Non split type Cable types Round cable
Frequency band Broad band Usage For radiated noise
KTR
EMC solution Service

Part No. list

You can download a drawing and a test report,
add an sample to Sample Request Box per part number.

Part No. Outer diameter
(mm)
Inner diameter
(mm)
Length
(mm)
Download Data Sample Request

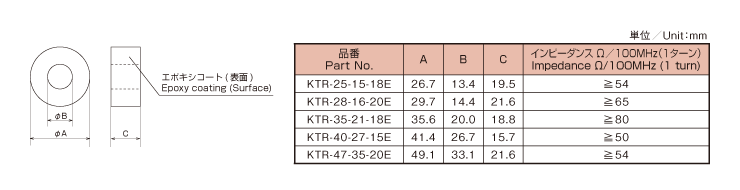

KTR-25-15-18E 26.7 13.4 19.5
KTR-28-16-20E 29.7 14.4 21.6
KTR-35-21-18E 35.6 20.0 18.8
KTR-40-27-15E 41.4 26.7 15.7
KTR-47-35-20E 49.1 33.1 21.6
