Ferrite core (noise filter)

High μ FERRITE CLAMP KRFC

Split ferrite clamp type

Split FERRITE CLAMP for Mid-frequency range from 3 to 50MHz.

Feature

Effective for suppression both of conducted noise upto 30MHz and radiated noise over 30MHz.
Split FERRITE CLAMP with plastic housing enables to attach assembled cable and cables with connecter.
Effective for suppression both of conducted noise upto 30MHz and radiated noise over 30MHz.
Split FERRITE CLAMP with plastic housing enables to attach assembled cable and cables with connecter.
Cable tie can assist to hold electric wires and enables the product to be xed to wire harness. (Excluding KRFC-4)
Wire guiding system prevent wires from being pinched when winding assembly.
With optional mounting xture, the product can be assembled on enclosure by M4 screw.(KRFC-15)


Complied with RoHS Directive 2011/65/EU

Materials

Ferrite Core:Soft ferrite
Housing:PA66 (Color:Natural / Flammability:UL94V-0)

Specification

List

Feature Split type, Plastic housing Cable types Round cable
Frequency band Signal noise, Power line noise Usage For radiated noise
KRFC

3DPDF

You can download the 3D PDF.
Please contact us for 3D PDFs with different part numbers.

Please see here when using it.

About viewing 3D PDF

About viewing 3D PDF

When you open a PDF that contains 3D content, you'll see a yellow bar at the top with the message "3D content is disabled."
Please enable the function to view.

To enable 3D content in the current document

Click the Options button and then select an appropriate option:

  • Trust this document one time only
  • Trust this document always
To enable 3D content permanently:

Go to Edit > Preferences > 3D & Multimedia and then select the Enable playing 3D content checkbox.

3DPDF
Get Adobe Acrobat Reader

You will need the Adobe Acrobat Reader to see above PDF files.
“Adobe” and “Acrobat” are either registered trademarks or trademarks of Adobe Systems Incorporated.

EMC solution Service

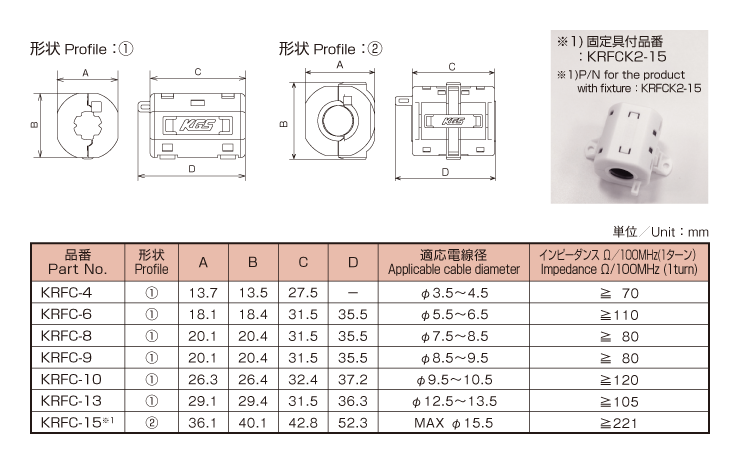

Part No. list

You can download a drawing and a test report,
add an sample to Sample Request Box per part number.

Part No. Outer diameter
(mm)
Inner diameter
(mm)
Length
(mm)
Download Data Sample Request
KRFC-4 13.7 4.5 27.5
KRFC-6 18.1 6.5 35.5
KRFC-8 20.1 8.5 35.5
KRFC-9 20.1 9.5 35.5
KRFC-10 26.3 10.5 37.2
KRFC-13 29.1 13.5 36.3
KRFC-15 36.1 15.5 52.3
KRFC-26 52.8 26.0 54.3
