Noise Reduction (EMC Reduction)Parts

Electromagnetic wave absorption (noise suppression) sheet

Electromagnetic wave absorption (noise suppression) sheet

MG ABSORPTION SHEET MG

Noise suppression

Electromagnetic noise suppression sheets mixed with magnetic metal filler

Feature

Noise Suppression is available with simply attaching it onto ICs or Cables.
Its exibility achieves attaching on bending portion.
Excellent processability, with secondary processing provided to t the speci c application.

Complied with RoHS Directive 2011/65/EU

Materials

MG-03A:Magnetic metal material + rubber

MG-12:Magnetic metal material + resin

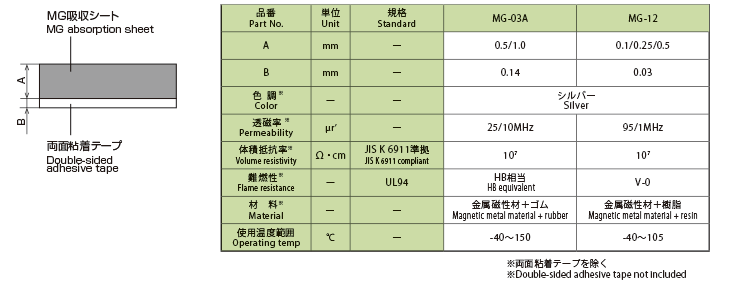

Specification

List

MG
EMC solution Service

Part No. list

You can download a drawing and a test report,
add an sample to Sample Request Box per part number.

Part No. 厚み(mm) 難燃性 List of Materials Sample Request
MG-03A-0.5 0.5 - Please ask
MG-03A-1.0 1.0 - Please ask
MG-12-0.1 0.1 - Please ask
MG-12-0.25 0.25 - Please ask
MG-12-0.5 0.5 - Please ask

Product Inquiry

Please send us your inquiry from the query system regarding product and technical matter about it.
EMC Design based on well-trained measurement skill and suggestion of selection guide of effective electro magnetic wave absorption (noise suppression) sheet is available.

If you are a website member, you can easily ask inquiry after Login.
