MAGNEFILM MFMAL, MFMAL-W

For noise suppression

Feature

High shielding effect at low frequencies from 100k to 1MHz.
Laminated layers provide insulation. (Excluding end portions)
Easy attachment with adhesive
Cutting to required sizes and to odd shapes is available.
※Size limitation (Max. width 40mm, Max. length 110mm)

  • EMI absorption
  • Noise suppression
  • Magnetic sheet

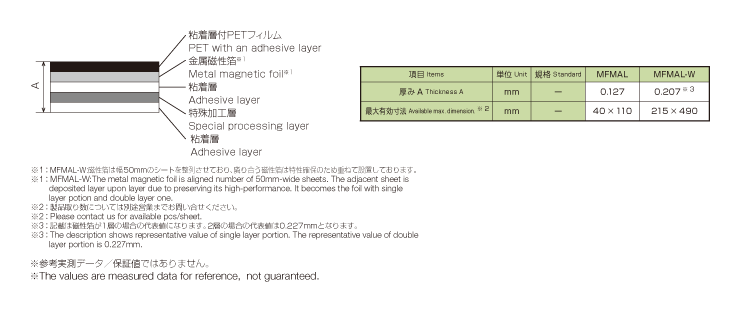

Specification

List

MFMAL,MFMAL-W

Different part number may have different characteristics. Please refer to the catalog for details.

EMC solution Service

Part No. list

You can download a drawing and a test report,
add an sample to Sample Request Box per part number.

Part No. Thickness(mm) Flame retardance Download Data Sample Request
MFMAL-0.127 0.127 -
MFMAL-W-0.207 0.207 -

Product Inquiry

Please send us your inquiry from the query system regarding product and technical matter about it.
EMC Design based on well-trained measurement skill and suggestion of selection guide of effective electro magnetic wave absorption (noise suppression) sheet is available.
