Electromagnetic wave absorption (noise suppression) sheet

Electromagnetic wave absorption (noise suppression) sheet

GHz SHIELD SHEET GSS-HT

Noise suppression

New shielding sheet for GHz band noise

Feature

No trace design of the SHIELD SHEET is required on PC board surfaces, providing high exibility in circuit design.
Noise suppression in higher frequency band is available without redesign of PC board.
Interference between ICs can be suppressed by applying the sheet shield to each IC.

Complied with RoHS Directive 2011/65/EU

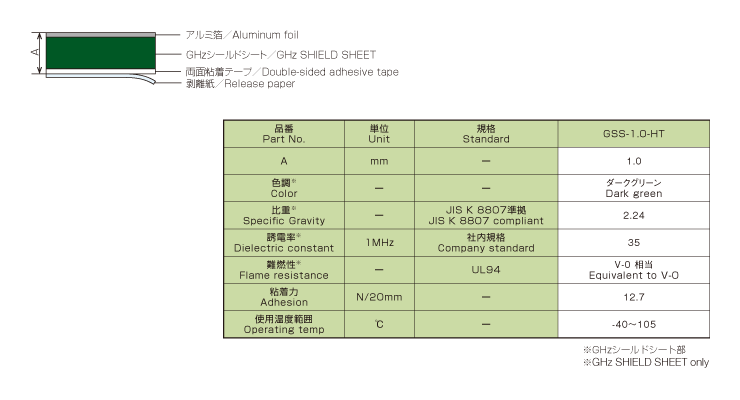

Specification

List

GSS-HT
EMC solution Service

Part No. list

You can download a drawing and a test report,
add an sample to Sample Request Box per part number.

Part No. 厚み(mm) 難燃性 List of Materials Sample Request
GSS-1.0-HT - V-0 equivalent Please ask

Product Inquiry

Please send us your inquiry from the query system regarding product and technical matter about it.
EMC Design based on well-trained measurement skill and suggestion of selection guide of effective electro magnetic wave absorption (noise suppression) sheet is available.

If you are a website member, you can easily ask inquiry after Login.
